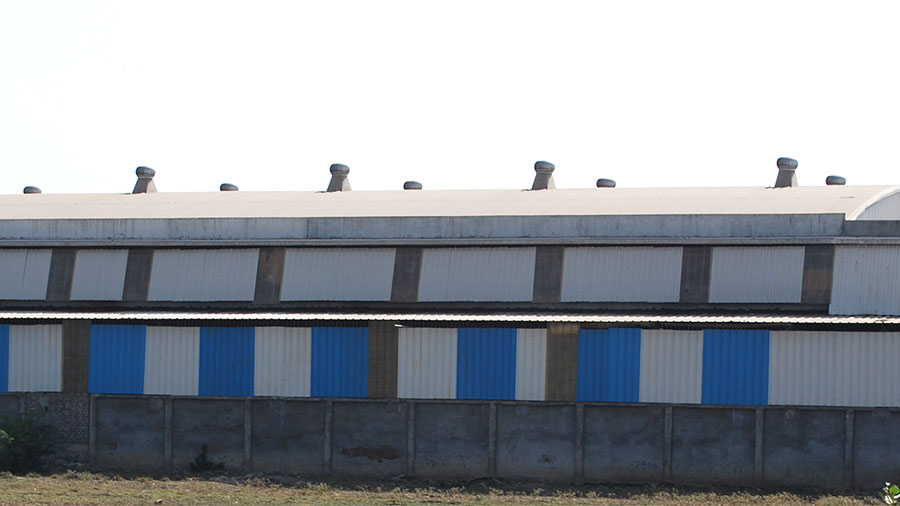

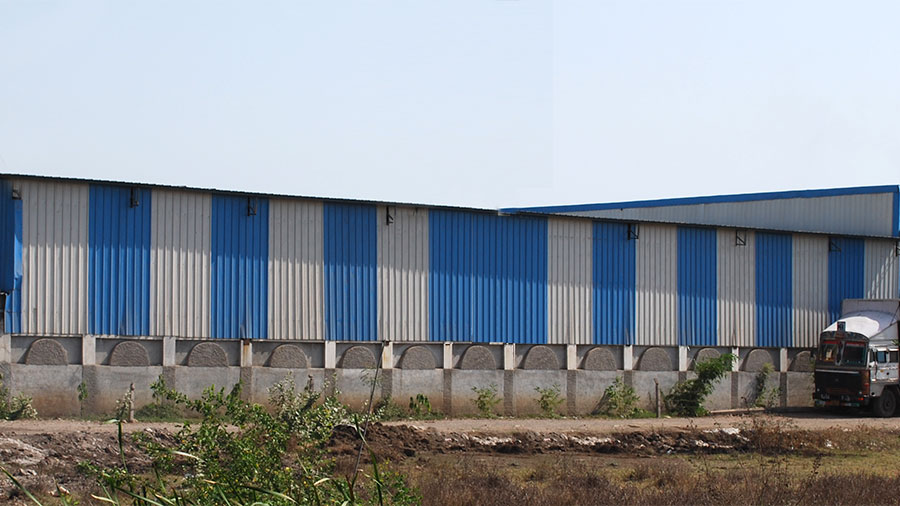

Wall Cladding Profile Sheet
Prem Industries offers unique Wall Cladding Profile which has high tensile strength promising excellent durability. The special protective coating resists the corrosive effects of peeling, cracking and chipping.
Technical Specification
wall cladding Profiles are manufactured from the finest high quality rolled steel raw material coils of PPGI (Pre Painted Galvanized Iron) ,PPGL (Pre Painted Galvalume) and NCGL (Non Color Galvalume).
Coated Roofing Sheet | |
Zinc coating | Z 120 GSM |
Primer service coat | 5 microns epoxy / PU on both sides |
Paint coating |
Regular Modified Polyester(RMP) (Optional -Silicon Modified Polyester & PVF 2) |
Painting thickness (top) | 18-20 microns |
Painting thickness (bottom) | 5-7 microns |
Surface paint reflection | Semi Gloss / Matt finish |
Conforms to | ASTM A653, A755, JIS G3302, G3312, IS277, 513, 14246, AS1397 |
Bare Galvalume Roofing Sheet | |
(55% Aluminium 45% Zinc Alloy ) | |
Alu - Zinc Coating | AZ 150 (Optimal AZ70) GSM |
Conforms to | ASTM A792, JIS G 3321, AS 1397 |
Yield Strength | 300 - 550 MPa |
Galvalume Color Coated Roofing Sheet | |
(55% Aluminium 45% Zinc Alloy ) | |
Alu - Zinc Coating | AZ 150 (Optimal AZ70) GSM |
Primer service coat | 5 microns epoxy / PU on both sides |
Paint coating | Regular Modified Polyester(RMP) (Optional -Silicon Modified Polyester & PVF 2) |
Painting thickness (top) | 18-20 microns |
Painting thickness (bottom) | 5-7 microns |
Surface paint reflection | Semi Gloss / Matt finish |
Conforms to | ASTM A792, A755, JIS G3321, G3322, AS1397 |
Yield Strength | 300 - 550 MPa |
Galvalume Color Coated Roofing Sheet
Material Dimension
Material Dimension
Total Coating Thickness (TCT) 0.40mm, 0.45mm, 0.50mm, 0.55mm,0.60mm, |
||||
Profile | Effective Width (EW) | Pitch (P) +/- 5mm | Depth (D) +/- 2 mm | Sheet Width (SW) |
Roofing Sheet | 1000mm | 250mm | 32mm | 1060mm |
