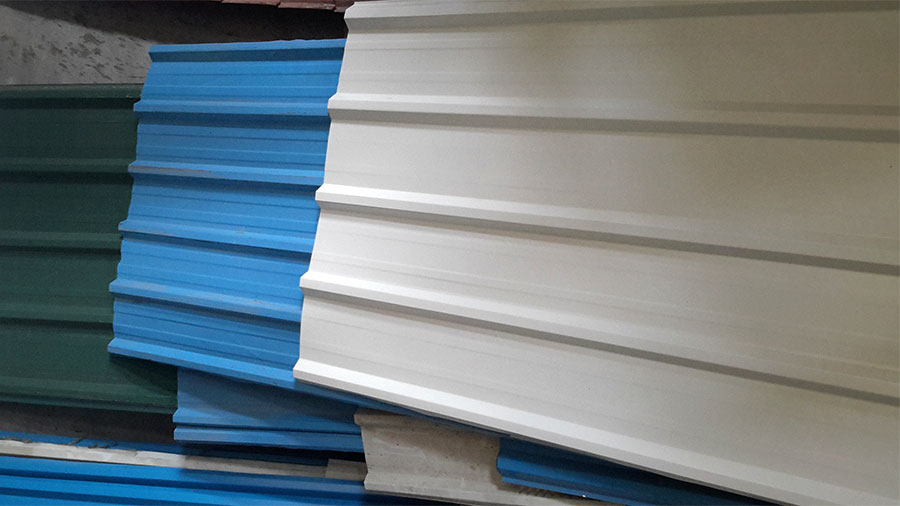

Roofing Sheet
Our color metal roofing is the most versatile roofing product in the market and offers you both elegance and flexible design for any building need.
Bare Galvalume Roofing Sheet | |
Zinc coating | Z 120 GSM |
Primer service coat | 5 microns epoxy / PU on both sides |
Paint coating |
Regular Modified Polyester(RMP) (Optional -Silicon Modified Polyester & PVF 2) |
Painting thickness (top) | 18-20 microns |
Painting thickness (bottom) | 5-7 microns |
Surface paint reflection | Semi Gloss / Matt finish |
Conforms to | ASTM A653, A755, JIS G3302, G3312, IS277, 513, 14246, AS1397 |
Color Coated Roofing Sheet | |
(55% Aluminium 45% Zinc Alloy ) | |
Alu - Zinc Coating | AZ 150 (Optimal AZ70) GSM |
Conforms to | ASTM A792, JIS G 3321, AS 1397 |
Yield Strength | 300 - 550 MPa |
Galvalume Color Coated Roofing Sheet | |
(55% Aluminium 45% Zinc Alloy ) | |
Alu - Zinc Coating | AZ 150 (Optimal AZ70) GSM |
Primer service coat | 5 microns epoxy / PU on both sides |
Paint coating |
Regular Modified Polyester(RMP) (Optional -Silicon Modified Polyester & PVF 2) |
Painting thickness (top) | 18-20 microns |
Painting thickness (bottom) | 5-7 microns |
Surface paint reflection | Semi Gloss / Matt finish |
Conforms to | ASTM A792, A755, JIS G3321, G3322, AS1397 |
Yield Strength | 300 - 550 MPa |
Galvalume Color Coated Roofing Sheet
Material Dimension
Material Dimension
Total Coating Thickness (TCT) 0.40mm, 0.45mm, 0.50mm, 0.55mm,0.60mm, |
||||
Profile | Effective Width (EW) | Pitch (P) +/- 5mm | Depth (D) +/- 2 mm | Sheet Width (SW) |
Roofing Sheet | 1000mm | 250mm | 32mm | 1060mm |
